RemapLabels

RemapLabels

Bases: LabelTransform

Modify labels in a label map.

Masking can be used to split the label into two during the inverse transformation .

Parameters:

Name Type Description Default
remapping dict[int, int]

Dictionary that specifies how labels should be remapped. The keys are the old labels, and the corresponding values replace them.

 required
masking_method TypeMaskingMethod

Defines a mask for where the label remapping is applied. It can be one of:

  • None: the mask image is all ones, i.e. all values in the image are used.

  • A string: key to a torchio.LabelMap in the subject which is used as a mask, OR an anatomical label: 'Left', 'Right', 'Anterior', 'Posterior', 'Inferior', 'Superior' which specifies a half of the mask volume to be ones.

  • A function: the mask image is computed as a function of the intensity image. The function must receive and return a 4D torch.Tensor.

 None
**kwargs

See Transform for additional keyword arguments.

 {}

Examples:

>>> import torch
>>> import torchio as tio
>>> def get_image(*labels):
...     tensor = torch.as_tensor(labels).reshape(1, 1, 1, -1)
...     image = tio.LabelMap(tensor=tensor)
...     return image
...
>>> image = get_image(0, 1, 2, 3, 4)
>>> remapping = {1: 2, 2: 1, 3: 1, 4: 7}
>>> transform = tio.RemapLabels(remapping)
>>> transform(image).data
tensor([[[[0, 2, 1, 1, 7]]]])
Warning

The transform will not be correctly inverted if one of the values in remapping is also in the input image:

>>> tensor = torch.as_tensor([0, 1]).reshape(1, 1, 1, -1)
>>> subject = tio.Subject(label=tio.LabelMap(tensor=tensor))
>>> mapping = {3: 1}  # the value 1 is in the input image
>>> transform = tio.RemapLabels(mapping)
>>> transformed = transform(subject)
>>> back = transformed.apply_inverse_transform()
>>> original_label_set = set(subject.label.data.unique().tolist())
>>> back_label_set = set(back.label.data.unique().tolist())
>>> original_label_set
{0, 1}
>>> back_label_set
{0, 3}

Examples:

>>> import torchio as tio
>>> # Target label map has the following labels:
>>> # {
>>> #     'left_ventricle': 1, 'right_ventricle': 2,
>>> #     'left_caudate': 3,   'right_caudate': 4,
>>> #     'left_putamen': 5,   'right_putamen': 6,
>>> #     'left_thalamus': 7,  'right_thalamus': 8,
>>> # }
>>> transform = tio.RemapLabels({2:1, 4:3, 6:5, 8:7})
>>> # Merge right side labels with left side labels
>>> transformed = transform(subject)
>>> # Undesired behavior: The inverse transform will remap ALL left side labels to right side labels
>>> # so the label map only has right side labels.
>>> inverse_transformed = transformed.apply_inverse_transform()
>>> # Here's the *right* way to do it with masking:
>>> transform = tio.RemapLabels({2:1, 4:3, 6:5, 8:7}, masking_method="Right")
>>> # Remap the labels on the right side only (no difference yet).
>>> transformed = transform(subject)
>>> # Apply the inverse on the right side only. The labels are correctly split into left/right.
>>> inverse_transformed = transformed.apply_inverse_transform()

__call__(data)

__call__(data: Subject) -> Subject

__call__(data: ImageT) -> ImageT

__call__(data: torch.Tensor) -> torch.Tensor

__call__(data: np.ndarray) -> np.ndarray

__call__(data: sitk.Image) -> sitk.Image

__call__(data: dict[str, object]) -> dict[str, object]

__call__(data: nib.Nifti1Image) -> nib.Nifti1Image

Transform data and return a result of the same type.

Parameters:

Name Type Description Default
data TypeTransformInput

Instance of torchio.Subject, 4D torch.Tensor or numpy.ndarray with dimensions \((C, W, H, D)\), where \(C\) is the number of channels and \(W, H, D\) are the spatial dimensions. If the input is a tensor, the affine matrix will be set to identity. Other valid input types are a SimpleITK image, a torchio.Image, a NiBabel Nifti1 image or a dict. The output type is the same as the input type.

 required

to_hydra_config()

Return a dictionary representation of the transform for Hydra instantiation.

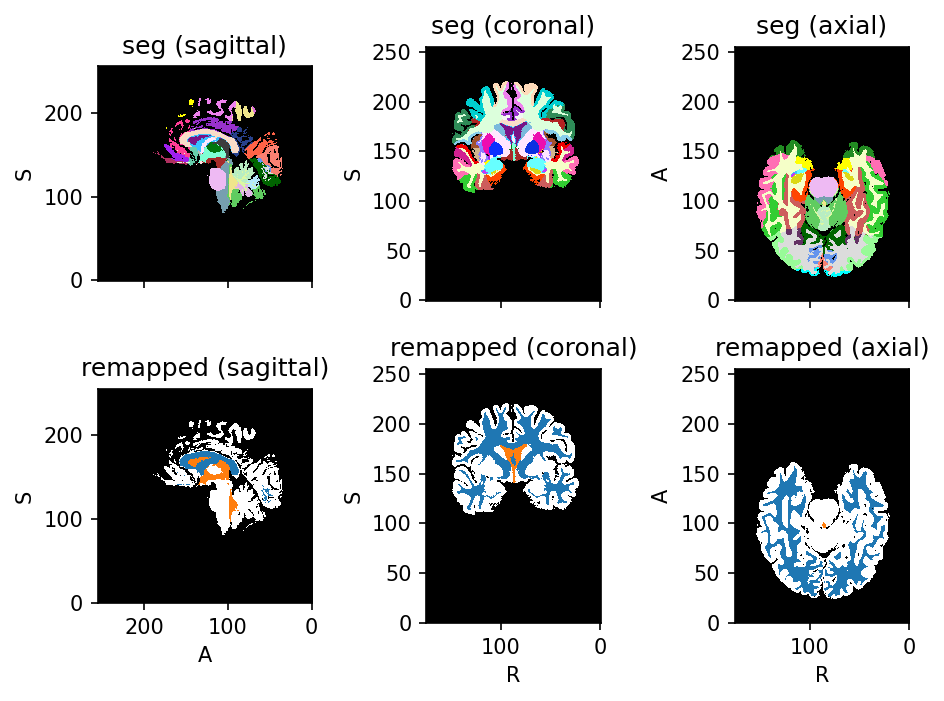

plot

Source code
import torchio as tio

subject = tio.datasets.FPG()
subject.remove_image('t1')

background_labels = (0, 1, 2, 3, 4)
csf_labels = (5, 12, 16, 47, 52, 53)
white_matter_labels = (
    45, 46,
    66, 67,
    81, 82,
    83, 84,
    85, 86,
    87,
    89, 90,
    91, 92,
    93, 94,
)

not_gray_matter_labels = (
    background_labels
    + csf_labels
    + white_matter_labels
)

gray_matter_labels = [
    label for label in subject.GIF_COLORS
    if label not in not_gray_matter_labels
]

labels_groups = (
    background_labels,
    gray_matter_labels,
    white_matter_labels,
    csf_labels,
)
remapping = {}
for target, labels in enumerate(labels_groups):
    for label in labels:
        remapping[label] = target

parcellation_to_tissues = tio.RemapLabels(remapping)
tissues = parcellation_to_tissues(subject).seg
subject.add_image(tissues, 'remapped')
subject.plot()
